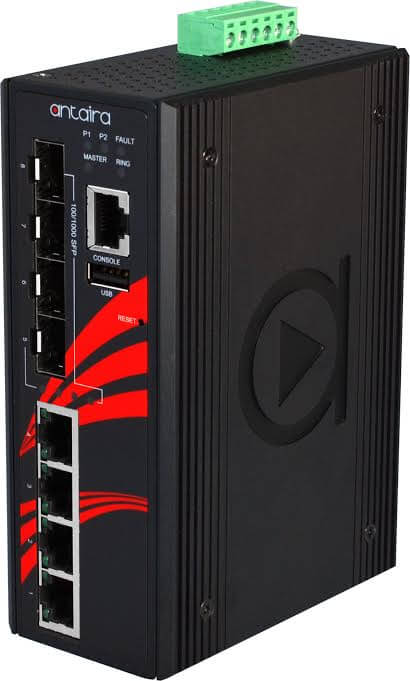

Antaira Technologies has expanded its industrial networking infrastructure family with the LMX-0804G-SFP series. Antaira’s new industrial gigabit managed Ethernet switch line (LMX-0804G-SFP series) has been designed to fulfill applications in harsh or outdoor environments. The LMX-0804G-SFP switch works well in the wind, solar, and power utility markets.
Antaira Technologies’ LMX-0804G-SFP series is a cost effective 8-port industrial gigabit managed Ethernet switch with a 12~48VDC power input range support. Each unit is designed with four 10/100/1000Tx RJ45 ports, and four 100/1000 dual-rate SFP slots for flexible fiber connection options.
Four fiber ports allows for the implementation of a fiber-optic ring as well as a separate fiber home run. With a 16 Gigabit backplane speed, the LMX-0804G-SFP supports Jumbo Frame and wide bandwidth for huge Ethernet data packet transmission for edge level connectivity solutions.
The product series provides high EFT, surge (2,000VDC) and ESD (6,000VDC) protection. It is also built with a dual-power input design with reverse polarity protection, and has a built-in relay warning function to alert maintainers when power failures occur. This makes it ideal for applications demanding a high reliability and distance extension. This product series is pre-loaded with “Layer 2” network management software that supports an ease of use Web Console or Telnet through the serial console by CLI configuration.
All Antaira managed switches provide the ring network redundancy function with STP/RSTP/MSTP and the ITU-T G.8032 (ERPS – Ethernet Ring Protection Switch) protocol, which supports a <50ms network recovery time, eliminating the compatibility issue for any existing network concerns. In addition, the built-in SNMP, VLAN, IGMP, QoS features support network planners to increase data transmission performance within the network. The external USB2.0 port allows the user to export and save all the configuration settings.
The flexible “custom label” feature also lets networking planners name each connection port. By naming each port, the networking planners can easily manage remote field devices.
The LMX-0804G-SFP series is backed by a five-year warranty and the units are IP30-rated, compact, fan-less, DIN-Rail and wall mountable. Each series is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI), and extreme temperatures. There are two operating temperature version models for either standard temperature (-10 ~ 70°C) or extended temperature (-40 ~ 75°C). The models have the dimensions of 54mm (W) x 99mm (D) x 142mm (H) and a unit weight of 2.4 pounds.
Antaira Technologies
www.antaira.com
