A wind turbine nacelle made from structural fabric? A tower made from composites? Blades with metal mesh inserts for structural rigidity? These might not be that far away.
Engineers with Bayer Material Science examine material positioning for a complex structure.
The greatest challenge for wind turbine blade structural and manufacturing engineers is to implement the idealized performance and noise mitigated designs of aerodynamics engineers. Limitations of previous generations of manufacturing technology and the reliance on lower cost materials have limited the type of spar and shear web structures which could be utilized.
With the forthcoming developments of additive manufacturing and 3D printing, hybrid material blades with performance and structural characteristics which seem like science fiction will become a reality within the next 2 years.

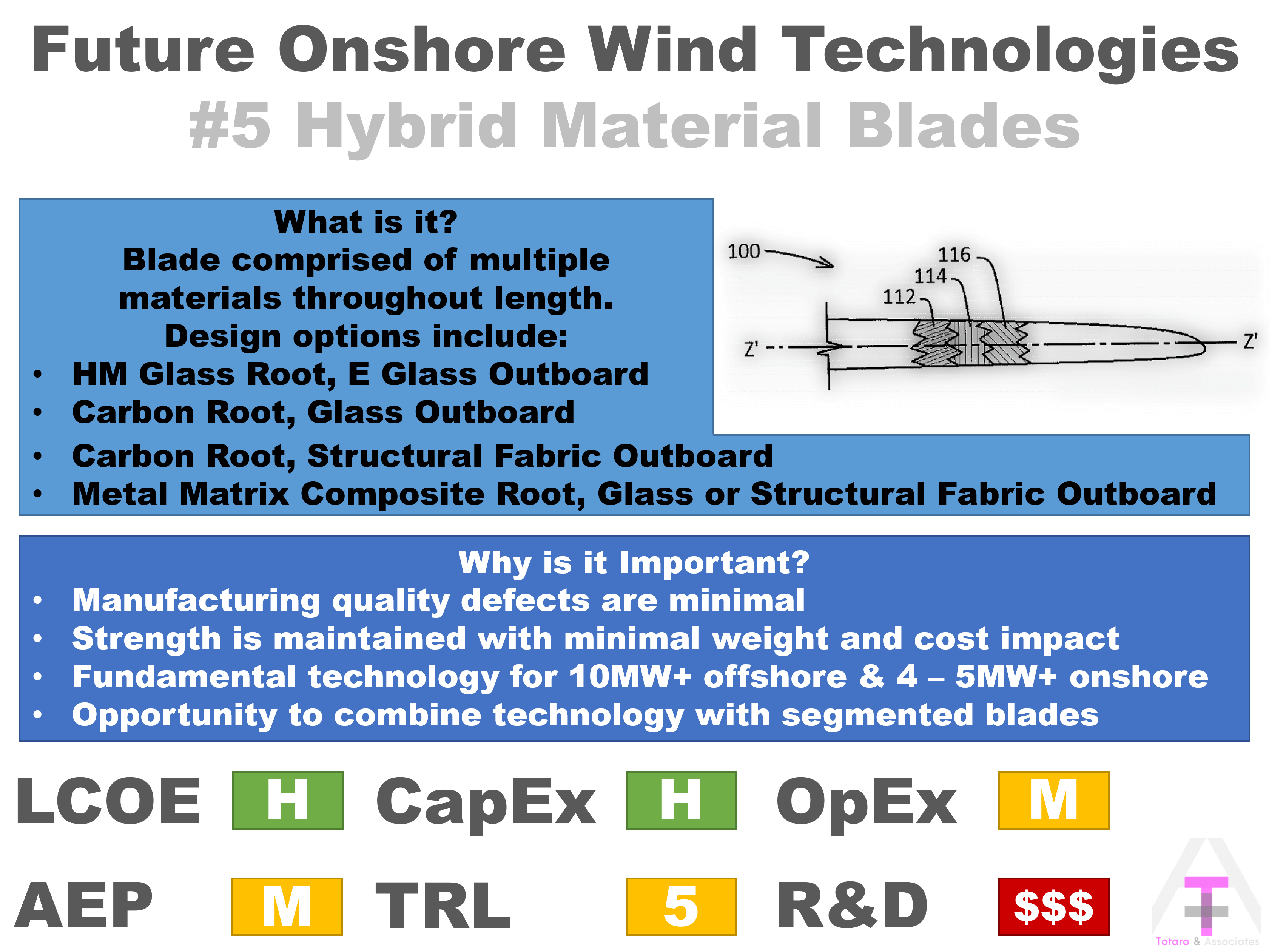

The concept behind hybrid material use is to allow for variation of material density at specific points of the blade in order to minimize weight while optimizing structural integrity. For instance, the spar/webs or the entire root could be made of a high modulus glass or carbon where loads are higher while utilizing a more conventional E-glass outboard in order to save cost and leverage manufacturing CapEx investments/infrastructure already in place.
However, as turbines continue to push the power rating envelope and power density needs to be maintained in order to offer a competitive product, rotor size must correspondingly grow to previously unheard of proportions for onshore turbines.
MKT Prism has analyzed the growing trend to shift towards IEC class II and III turbines, along with the growth in power rating. The results indicate that at 4 to 4.5 MW would necessitate a 135 to 160m onshore rotor diameter for a competitive class II and III turbines. This rivals the current generation of offshore blades, which are being constructed with significant carbon reinforcement and typically a root diameter larger than the onshore transportable limit of ~4.2m.
Pick on any of the images here for larger versions.
Clearly, a new generation of technology will be required to push turbines to a higher level, and hybrid material combinations are poised to take a prime role. As Zoltek noted in their previous analysis of the carbon vs. glass trade-off, there are points at which carbon blade mass can be reduced vs glass blades, particularly as blade length extends well beyond the 50m threshold.
The challenge of implementation has been one of cost, with only the longest blades (typically for offshore) could leverage carbon. Now with the advent of more advanced manufacturing techniques, such as VARTM, carbon prepregs can be more easily implemented longer onshore blades.

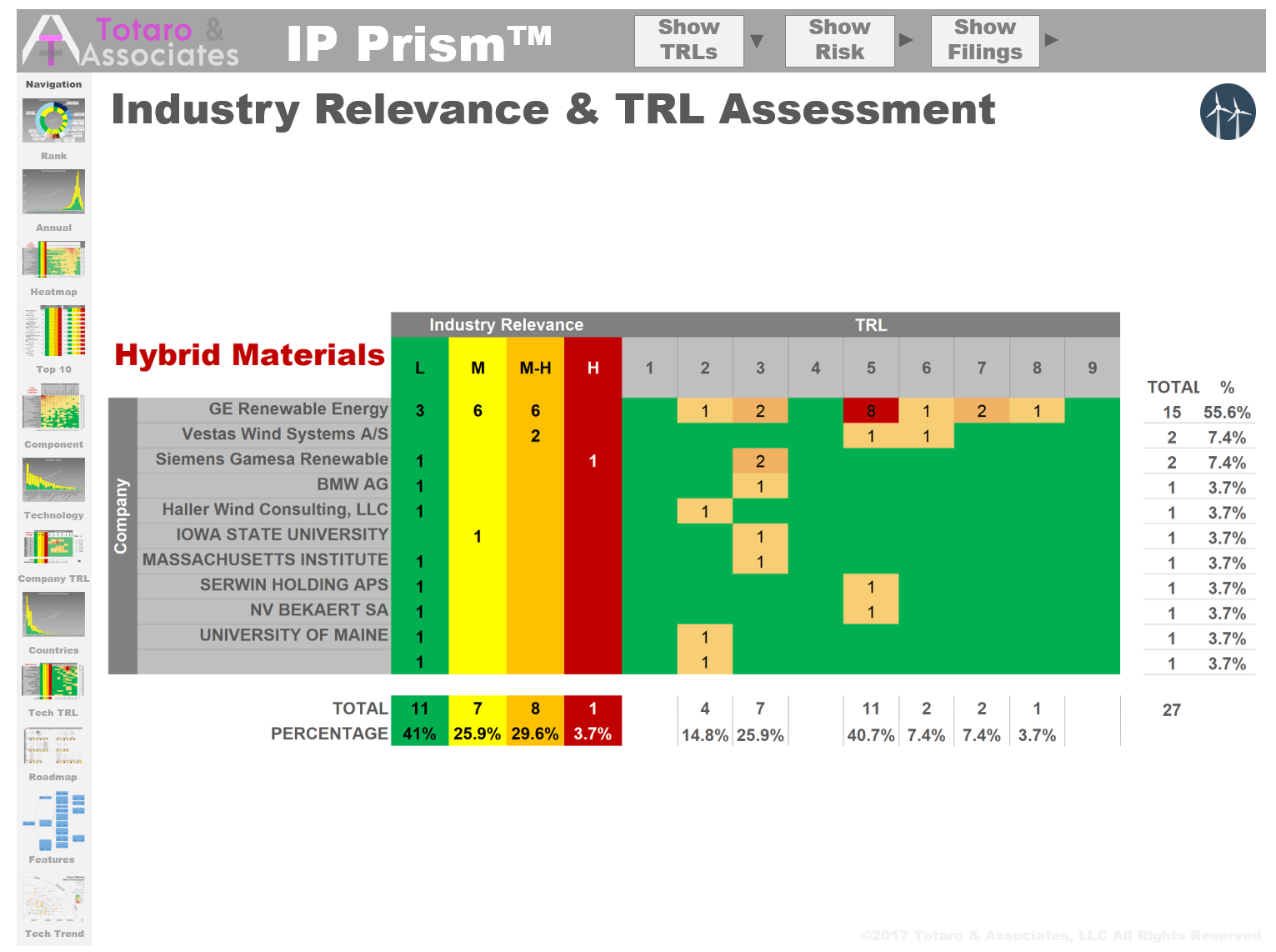

Current developments in hybrid materials and 3D printing are still in their infancy with the majority of innovations still in the TRL 3 – 5 range, according to the analysis by IP Prism™. But these advanced manufacturing techniques will allow for the integration of structural, aerodynamic and noise mitigating features.
Metal-matrix composites have been widely used in the aerospace sector for many years, and represent an opportunity to leverage the technology and manufacturing techniques for wind now that the cost has been reduced to an acceptable level.
