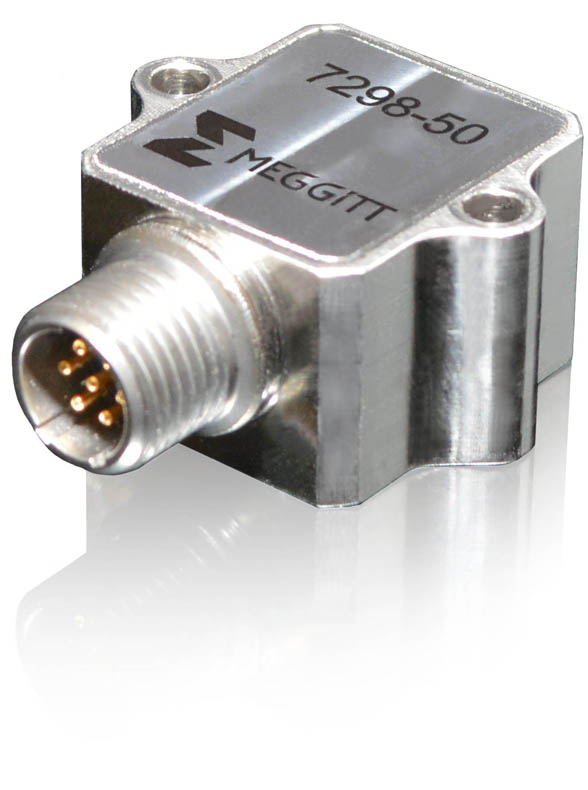

The Endevco model 727, similar to the one pictured, offers exceptional frequency response, from dc to 10kHz for the 2 kg range, and up to dc to 100 kHz for the 60 kg range, to capture the entire frequency range of interest.
Meggitt Sensing Systems has announced the launch of the Endevco model 727, an extremely lightweight piezoresistive accelerometer for accurate shock measurement during drop testing of consumer electronic devices, among other shock and impact testing environments. Available in four ranges (2,000g, 6,000g, 20,000g and 60,000g), the model 727 can measure shocks in g ranges well above current drop test sensors.
The Endevco model 727 offers exceptional frequency response, from dc to 10kHz for the 2 kg range, and up to dc to 100 kHz for the 60 kg range, to capture the entire frequency range of interest. In addition, it has been tested and rated to survive shocks up to 1.5 times its range. At only 0.3 grams for the accelerometer body and 1.1 grams per foot for the integral 10-foot cable, mass loading to the test object is minimal. Its 0.28-in. diameter, anodized aluminum package is intended for adhesive mounting. The standard unit comes with an A2LA-certified calibration taken at 10V (other input voltages should be specified at time of order).
The Endevco model 42894 removal tool is included with each unit. Recommended signal conditioning for use with the model 727 includes the model 126 three-channel dc bridge amplifier, the model 136 three-channel signal conditioner, and the model 436 dc differential voltage amplifier. All sensing elements are manufactured in-house at Meggitts ISO9001-certified MEMS facility in Sunnyvale, California, USA. In addition, the Endevco model 727 is covered by a five-year comprehensive product warranty.
Endevco
www.endevco.com
Meggitt Sensing Systems
www.meggittsensingsystems.com
Filed Under: Sensors
