Modulift’s Active Link modernizes load monitoring with new spreader beam

By Paul Dvorak | February 14, 2017

The Active Link is an innovative new end unit system with an integrated load cell, compatible with the existing range of Modulift spreader beams. It will provide wireless real-time data by measuring the load at either end of the spreader beam and is ideal for both weighing and dynamic load monitoring. Data is transmitted wirelessly to a USB transceiver that must be connected to a Windows computer or tablet with a spare USB port.

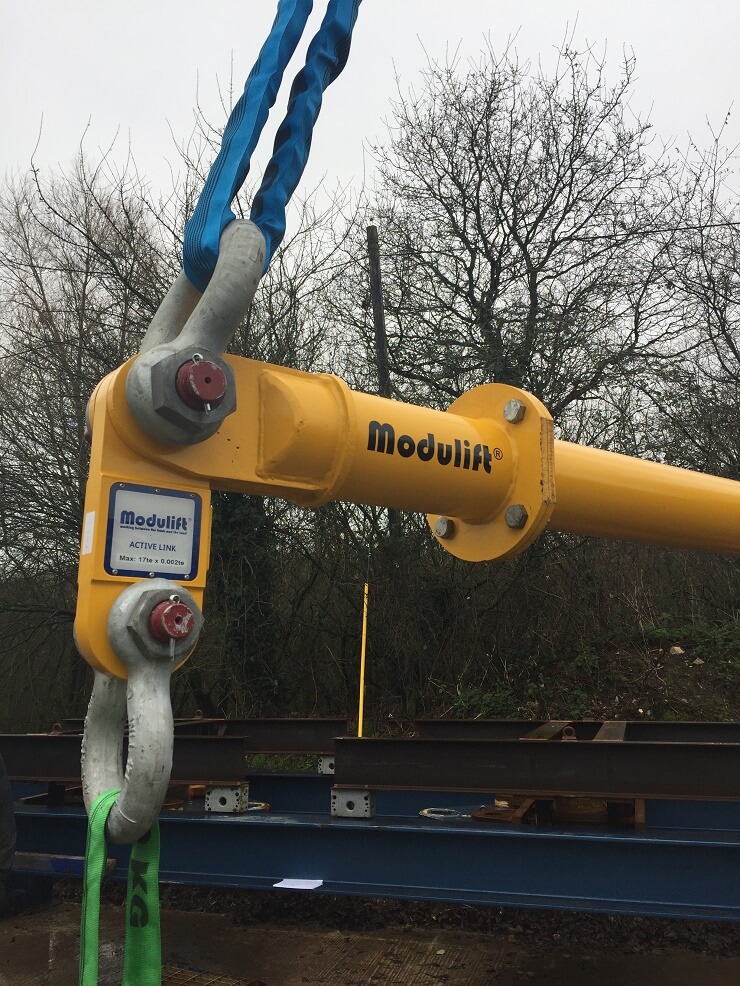

Active Link

The Active Link is a clever new end unit with an integrated load cell, compatible with the existing range of Modulift spreader beams.

The Active Link, which replaces the standard drop link component, presents a myriad of benefits with time, cost and weight savings all attributable to the fact that measurement technology doesn’t have to be sourced as an additional rigging tool. Another standout feature is that the height of rigging is significantly reduced, especially beneficial in low headroom applications.

Modulift has worked closely with load monitoring and load cell equipment specialist Straightpoint to integrate its strain gauge technology into the new spreader beam concept. David Ayling, director at Straightpoint, said: “Rigging a load cell into a crane or lifting application takes up space that can otherwise be removed by incorporating the load cell in the beam itself.”

He added: “In the case of a Modulift spreader beam, the drop link lends itself perfectly to the adaptation and the product makes a lot of sense to both manufacturers.”

The Active Link is available in a range of capacities up to 100t based on standard Modulift beam sizes from MOD 12 to MOD 70H; the initial range will be AL 12, AL 24, AL 34, AL 50, AL 70 and AL 70H. The new drop links are designed to fit standard end units, as well as the standard top and bottom shackles specified for the spreader.

Chris Schwab, sales manager at Modulift, said: “We recognized that if we could supply a spreader with a built-in load cell, eliminating the need for additional force measurement devices and associated rigging, it would be welcomed by the industry”

He added: “Our marketing and engineering departments agreed there was a market for it, particularly among customers who lead the way in best practice. It felt like a good idea at the time and I’m delighted that my sales colleagues and I can now promote the concept to industry influencers and decision-makers.”

Upon consensus that the Active Link concept was worthy of further exploration, a prototype was designed and extensive tests were subsequently conducted over a six-month period either side of the turn of the year. Modulift is now welcoming orders and inquiries.


Filed Under: Construction
Tagged With: modulift
