Antaira expands its industrial PoE+ networking family, with the LNP-0702C-SFP and LNP-0702C-SFP-24 series.
Antaira Technologies is a developer and supplier of industrial device networking and communication solutions for harsh environmental applications. They recently announced the expansion of their industrial PoE+ networking infrastructure family, with the LNP-0702C-SFP and LNP-0702C-SFP-24 series.

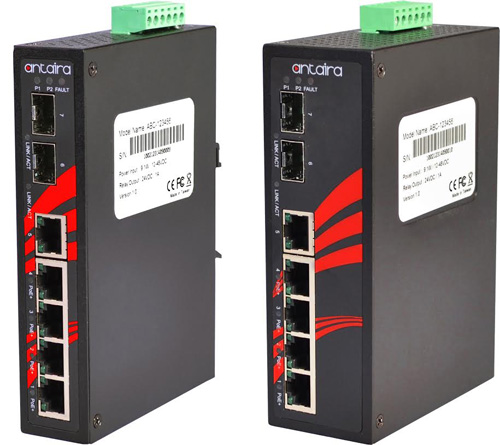

Antaira Technologies’ LNP-0702C-SFP and LNP-0702C-SFP-24 series are a cost-effective, 7-port industrial PoE+ gigabit unmanaged, Ethernet switch, with 48~55VDC high-voltage power input (LNP-0702C-SFP) and 12~36VDC low-voltage power input (LNP-0702C-SFP-24). Each unit is designed with five 10/100Tx ports, four of which support IEEE 802.3at high-power PoE (30W/port), as well as two dual-rate 100/1000Fx SFP slots.
These product series provide a high EFT, surge (2,000 VDC), ESD (6,000VDC), and reverse-polarity protection to prevent any unregulated voltage. They can support the power redundancy feature using a dual-power input design. There’s also a built-in relay warning function to alert maintainers when power failures occur.
Antaira’s new LNP-0702C-SFP and LNP-0702C-SFP-24 series have been designed to fulfill special needs within extreme, ambient weather environments. The IP30 rated LNP-0702C-SFP and LNP-0702C-SFP-24 are backed by a five-year warranty. These units are compact, fanless, and DIN-Rail/wall-mountable. Each unit is built to withstand industrial networking hazards like shock, drop, vibration, and electromagnetic interference (EMI). The unit also has temperature extreme version options for either a standard temperature range (-10° C to 70° C), or an extended operating temperature range (-40° C to 75° C).
The LNP-0702C-SFP model has dimensions of 30 mm (W) x 142 mm (H) x 99 mm (D) and a unit weight of 1.3 pounds. The LNP-0702C-SFP-24 model has dimensions of 46 mm (W) x 142 mm (H) x 99 mm (D).
Antaira Technologies
www.antaira.com
