Schurter T12-MSM circuit breaker comes with design appeal

By Paul Dvorak | October 23, 2014

Schurter announces the T12-MSM, a combination of a reliable circuit breaker and a robust metal switch. With its actuating appeal, the T12-MSM, unlike a typical switch, can be stylishly displayed on the front of the system as opposed to being hidden in the back.

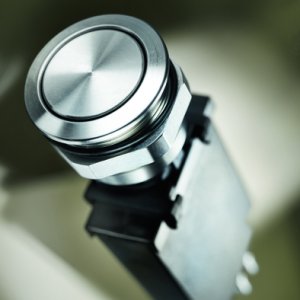

The switch housing and actuator are fabricated from high-quality stainless steel, and are available with mounting diameters of 19 and 22 mm.

The switch housing and actuator are fabricated from high-quality stainless steel, and are available with mounting diameters of 19 and 22 mm.

Schurter combines its circuit breakers, with thermal operation (T12) and thermal-magnetic operation (TM12), with its MSM series metal switches. The T12-MSM creates a market innovation that merges over-current protection with an attractive pushbutton design.

MSM switches are recognized for their visual appeal and operating characteristics. Both the switch housing and the actuator are fabricated from high-quality stainless steel, and are available with mounting diameters of 19 and 22 mm. The actuator and circuit breaker are supplied separate. The switch mounts with a threaded neck. A coupler adjoins the circuit breaker to the switch. Switching voltage is 240 Vac/ 28 Vdc with a rated current from 50 mA to 16A (15 A UL). It is suited for use in a temperature range of -5°C to 60°C and comes equipped with auxiliary contact or shunt terminal as well as quick-connect or screw-clamp terminals. The T12-MSM offers a variety of design options including an assortment of colors for ring or point illumination, as well as options for standard or custom inscription.

The T12 and TM12 are reliable circuit breakers with positive trip-free operation. The contacts open even if the reset button is manually held in the closed position. They reliably protect equipment with rated currents from 50 mA to 16A. The optional magnetic release protects against increased risk of short circuits.

The combination of the T12 circuit breaker and the MSM switch unites all these features in a product that is also extremely robust. With a vandal-proof design, IP 64 tightness protection and IK 07 impact resistance, the T12-MSM is also suited for outdoor applications and use in harsh environments. The look and feel is novel and stands out among other circuit breakers as a true designer piece, suitable for mounting on the front side of the equipment where aesthetics is paramount. The T12-MSM offers unprecedented product-design opportunities for applications where moderate over current can occur. The combination circuit breaker has a wide range of applications including those requiring eletromechanical shielding, outdoor applications, and especially applications with electric motors.  The T12-MSM is packaged 10 pieces per box.

Schurter
http://www.schurterinc.com/Components/Circuit-Protection/Circuit-Breakers/Circuit-Breakers-thermal/T12-MSM.
