The TorqueTrak Torque and Power Monitoring System (TPM2 series) is a rugged precision instrument that measure torque or power or both on rotating shafts in real time. The TPM2 uses RS422 full duplex, point-to-point serial interface communication. The TPM2 fits on shafting up to 40-in, (1016 mm) diameter. Machine disassembly is not required. A few features include:
-
The TorqueTrak Torque and Power Monitoring System (TPM2 series) is a rugged precision instrument that measures torque or power or both on rotating shafts in real time.
Software for setup and configuration
- Digital RS422 output
- Splash resistant control box
- Selectable input ranges
- High rpm and centrifugal g-force rating
A few other plusses are:

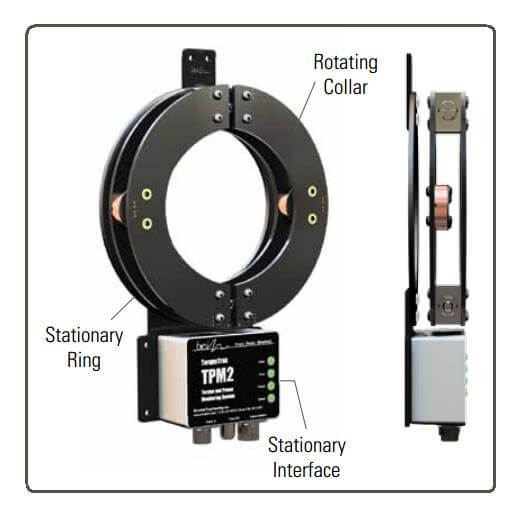

The side view (right) shows more clearly the stationary ring and the rotating collar.
Easy installation – The rotating collar and stationary ring are split and bolt together around the shaft, so no machine assembly or shaft modification is required.
Robust construction – Sturdy hardware and electronics, built for demanding environments.
Reliable operation – Inductive power and data transfer with generous clearance between stationary and rotating parts. No wear surfaces.
System status indicators – Confirm proper operation at a glance. This expedites troubleshooting.
Easy-on Collar – The rotating collar accommodates small variations in shaft diameter and clamps to the shaft using standard tools.
Communications made easy – High-speed bi-directional communications link interfaces with a PC or PLC. The sample rate is user-selectable, up to 4,800 samples/second.
Product support – Backed by BEI’s proven outstanding customer service, before and after the sale.
For a product data sheet: http://www.binsfeld.com/userfiles/filemanager/239/
