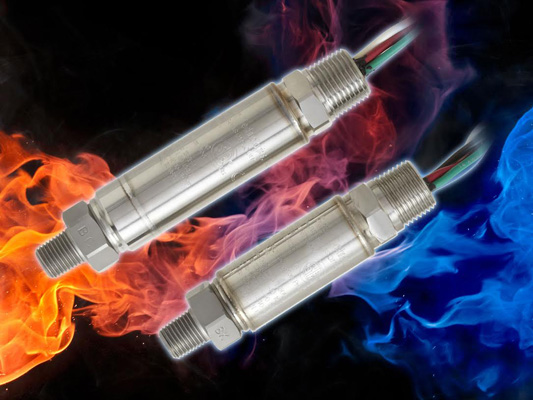

AST’s multi-variable pressure/temperature transmitter combines pressure and temperature sensing in one package.
As the global market focuses on lean manufacturing, American Sensor Technologies (AST) offers multi-variable sensors that combine multiple sensing systems such as pressure, temperature, and even LVDT linear position sensors in one package. The package is designed to reduce the number of components in an installation, trim inventory stock and build times, and eliminate waste.
Taking on the same features and shape of a traditional single mode sensor, multi-variable sensors can reduce power consumption requirements. For instance, the Model AST46PT Explosionproof Pressure/Temperature Transmitter provides pressure and temperature outputs from a single process point. In addition to simplifying control systems, the Model AST46PT offers a superior pressure reading along with a temperature sensor output for less than the cost of a stand-alone temperature sensor. Ideal for low-power systems, these dual-output transmitters generate a pressure and temperature reading with the power consumption of one sensor.
The dual-output configuration of the AST46PT transmitters also reduces process penetration points and leaks that are important considerations in critical systems, including heavy processing, hydraulics, offshore, and more. In essence, the AST46PT offers a hazardous area solution for monitoring pressure and temperature with one device. Incorporating a microprocessor-controlled design, along with AST’s proven one-piece body construction, the Model AST46PT Explosionproof Pressure/Temperature Transmitter offers high-accuracy pressure and temperature measurements of +/-0.1% and 1.0% BFSL, respectively.
Units are available in various temperature ranges from -40° F to 250° F (-40° C to 125° C) and pressure ranges up to up to 20,000 PSI (1,400 Bar). The Model AST46PT is also CSA-approved for use in hazardous areas including Class 1 Div 1 Explosionproof Groups A, B, C and D, and for mining applications, Class 2 Div 1 Groups E, F and G. The dual-output pressure/temperature transmitter can be constructed in a wide range of wetted materials, including high-quality stainless steels and super alloys: 17-4PH SS, 316L SS, Inconel 718, Waspalloy, and Hastelloy C-276.
American Sensor Technologies, Inc. (AST)
www.astsensors.com
