Monitoring electromagnetic safety brakes is an increasingly important topic. Mayr power transmission is setting new standards with the new, intelligent brake control module ROBA-brake-checker. This module is can energize brakes and monitor them without the use of sensors. It is flexible and easy to integrate into existing systems.

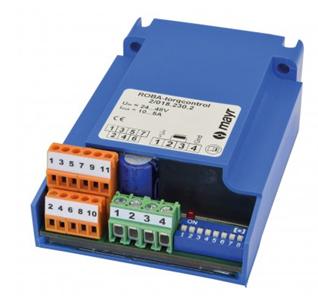

Targeted braking torque control is accomplished with the new ROBA-torqcontrol module. The device can be operated with 24V or 48Vdc, and can control brakes with the coil nominal voltage of 10A or 5A.
As the amount of networking between people, processes and machines increases, the requirements on the individual components of a drive line also rise. Mayr power transmission has risen to the current challenges set by the Industry 4.0. and has already incorporated into its range intelligent products which can communicate with the superordinate controls. The latest developments include an intelligent brake control module, the ROBA-brake-checker. It recognizes the switching condition of the actuator and the wear on the brake linings, and thus detects safety-critical conditions prior to their occurrence. Any changes in the braking torque can be instantly detected and countermeasures initiated – for maximum functional and operational safety.
The new module ROBA-brake-checker serves to operate safety brakes at reduced power while simultaneously monitoring their switching condition. It works on an input of 24 or 48 Vdc, and can control brakes with a coil nominal current of 10 or 5A. In comparison to the previous fast acting rectifiers, the new module is characterized by its higher performance and also by a larger input voltage range of 18 to 30 Vdc or 42 to 54 Vdc and a controlled output voltage at reduction. In addition, a higher cycle frequency is possible. The module ROBA-brake-checker reliably detects when the brake condition changes; i.e. whether the armature disk has been attracted or released. The module emits the respective switching condition of the brake via a signal output. With the ROBA-brake-checker, the switching condition of safety brakes can therefore be recorded in machines and systems even without the usual microswitches or proximity sensors.
The module reliably functions without mechanical contacts and is wear-free, independent of the cycle frequency and count. Additional wiring and possible sealing of switches and sensors is not required. In addition, it is possible with the sensorless condition monitoring to adapt the over excitation time automatically when required. Here an integrated automatic system regulates the voltage to the set lowering voltage after a brake-specific over excitation time. Using a DIP switch, the automatic system can be switched off, after which it is possible to set certain, specified values manually.
Through the comparison of tightening current and holding current, the module ROBA-brake-checker is able to detect a possible wear reserve or line breakage, or, if applicable, to detect unpermitted heat-up. In this way it can reveal safety-critical conditions and errors prior to their occurrence, and thus guarantee maximum operational safety for machines and systems. The new monitoring module can be used for a wide range of ROBA-stop brakes, and can be easily, quickly and inexpensively integrated, also into existing systems. With its compact dimensions – 30 x 69 x 73.6 mm – it can easily be integrated into control cabinets.
For applications that require braking torque control in addition to condition monitoring, mayr power transmission provides the braking torque control module’s torqe control. It features the properties of the ROBA-brake-checker, and is additionally able to change the level of braking torque during operation through the targeted influencing of current and voltage. In this way, devices and machines can be evenly and gently decelerated. The module ROBA-torqcontrol allows control circuits to be constructed and movements to be braked intelligently – ideal prerequisites for use in smart, networked machines.
